d:外徑 Screw O.D. I:導程 Lead Da:珠徑 Ball Dia n:珠圈數 Number of Circuits K:剛性 Stiffness(Kgf/um) |
Ca:動額定負荷 Basic Dynamic Rating Load(Kgf) Coa:靜額定負荷 Basic Static Rating Load(Kgf) |
螺帽型號 |

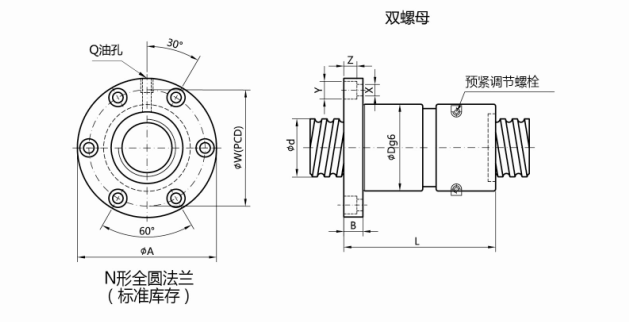

螺桿,螺帽的基本數據 Dimensions |
Nut Model No. |
d |
I |
Da |
D |
A |
B |
L |
W |
X |
Y |
Z |
Q |
n |
Ca |
Coa |
K |
DFA01604-T4 |
16 |
4 |
2.381 |
28 |
52 |
10 |
80 |
38 |
5.8 |
10 |
6 |
M6 |
1X4 |
973 |
2406 |
43 |
DFA01605-T4 |
5 |
3.175 |
28 |
52 |
10 |
100 |
38 |
5.8 |
10 |
6 |
M6 |
1X4 |
1380 |
3052 |
44 |
DFA02004-T4 |
20 |
4 |
2.381 |
36 |
62 |
11 |
80 |
48 |
5.8 |
10 |
6 |
M6 |
1X4 |
1006 |
2987 |
51 |
DFA02005-T4 |
5 |
3.175 |
36 |
62 |
11 |
101 |
48 |
5.8 |
10 |
6 |
M6 |
1X4 |
1551 |
3875 |
53 |
DFA02504-T4 |
25 |
4 |
2.381 |
40 |
66 |
11 |
80 |
53 |
5.8 |
10 |
6 |
M6 |
1X4 |
1180 |
3795 |
60 |
DFA02505-T4 |
5 |
3.175 |
40 |
66 |
11 |
101 |
53 |
5.8 |
10 |
6 |
M6 |
1X4 |
1724 |
4904 |
62 |
DFA03205-T4 |
32 |
5 |
3.175 |
50 |
82 |
13 |
102 |
67 |
7 |
12 |
7 |
M6 |
1X4 |
1922 |
6343 |
74 |
DFA03210-T4 |
10 |
6.350 |
53 |
90 |
15 |
162 |
71 |
9 |
15 |
9 |
M6 |
1X4 |
4805 |
12208 |
82 |
|
d:外徑 Screw O.D. I:導程 Lead Da:珠徑 Ball Dia n:珠圈數 Number of Circuits K:剛性 Stiffness(Kgf/um) |
Ca:動額定負荷 Basic Dynamic Rating Load(Kgf) Coa:靜額定負荷 Basic Static Rating Load(Kgf) |
螺帽型號 |
螺桿,螺帽的基本數據 Dimensions |
Nut Model No. |
d |
I |
Da |
D |
A |
B |
L |
W |
X |
Y |
Z |
Q |
n |
Ca |
Coa |
K |
DFA04005-T4 |
40 |
5 |
3.175 |
60 |
94 |
15 |
105 |
75 |
9 |
15 |
9 |
M8 |
1X4 |
2110 |
7988 |
87 |
DFA04010-T4 |
10 |
6.350 |
63 |
108 |
18 |
165 |
85 |
11 |
18 |
11 |
M8 |
1X4 |
5399 |
15500 |
99 |
DFA05010-T4 |
50 |
10 |
6.350 |
75 |
118 |
18 |
171 |
95 |
11 |
18 |
11 |
M8 |
1X4 |
6004 |
19614 |
117 |
DFA06310-T4 |
63 |
10 |
6.350 |
90 |
138 |
22 |
182 |
112 |
13.5 |
22 |
13 |
M8 |
1X4 |
6719 |
25358 |
139 |
DFA08010-T4 |
80 |
10 |
6.350 |
105 |
156 |
22 |
182 |
130 |
13.5 |
22 |
13 |
M8 |
1X4 |
7346 |
31953 |
156 |
