高速?gòu)?qiáng)化防塵靜音——滾珠絲杠——SFH |
|
d:外徑 Screw O.D. I:導程 Lead Da:珠徑 Ball Dia n:珠圈數 Number of Circuits Ls:螺桿長度 Screw Length |
Ca:動額定負荷 Basic Dynamic Rating Load(Kgf) Coa:靜額定負荷 Basic Static Rating Load(Kgf) |
螺帽型號 |

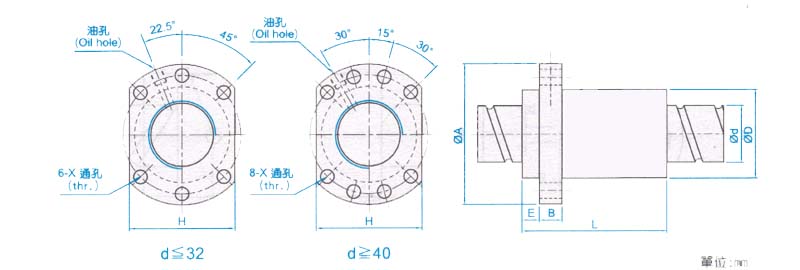

螺桿,螺帽的基本數據 Dimensions |
Nut Model No. |
d |
I |
Da |
D |
A |
E |
B |
L |
W |
H |
X |
Q |
n |
Ca |
Coa |
K |
SFH01205-2.8 |
12 |
5 |
2.500 |
24 |
40 |
5 |
10 |
30 |
32 |
30 |
4.5 |
- |
2.8*1 |
661 |
1316 |
19 |
SFH01210-2.8 |
12 |
10 |
2.500 |
24 |
40 |
5 |
10 |
45 |
32 |
30 |
4.5 |
- |
2.8*2 |
642 |
1287 |
19 |
SFH01605-3.8 |
15 |
5 |
2.778 |
28 |
48 |
5 |
10 |
37 |
38 |
40 |
5.5 |
M6x1P |
3.8*1 |
1112 |
2507 |
30 |
SFH01610-2.8 |
15 |
10 |
2.778 |
28 |
48 |
5 |
10 |
45 |
38 |
40 |
5.5 |
M6x1P |
2.8*1 |
839 |
1821 |
23 |
SFH01616-1.8 |
15 |
16 |
2.778 |
28 |
48 |
5 |
10 |
45 |
38 |
40 |
5.5 |
M6x1P |
1.8*1 |
552 |
1137 |
14 |
SFH01616-2.8 |
15 |
16 |
2.778 |
28 |
48 |
5 |
10 |
61 |
38 |
40 |
5.5 |
M6x1P |
2.8*1 |
808 |
1769 |
22 |
SFH01620-1.8 |
15 |
20 |
2.778 |
28 |
48 |
7 |
10 |
58 |
38 |
40 |
5.5 |
M6x1P |
1.8*1 |
554 |
1170 |
14 |
SFH02005-3.8 |
20 |
5 |
3.175 |
36 |
58 |
7 |
10 |
37 |
47 |
44 |
6.6 |
M6x1P |
3.8*1 |
1484 |
3681 |
37 |
SFH02010-3.8 |
20 |
10 |
3.175 |
36 |
58 |
7 |
10 |
55 |
47 |
44 |
6.6 |
M6x1P |
3.8*1 |
1516 |
3833 |
40 |
SFH02020-1.8 |
20 |
20 |
3.175 |
36 |
58 |
7 |
10 |
54 |
47 |
44 |
6.6 |
M6x1P |
1.8*1 |
764 |
1758 |
19 |
SFH02020-2.8 |
20 |
20 |
3.175 |
36 |
58 |
7 |
10 |
74 |
47 |
44 |
6.6 |
M6x1P |
2.8*1 |
1118 |
2734 |
29 |
SFH02505-3.8 |
25 |
5 |
3.175 |
40 |
62 |
7 |
10 |
37 |
51 |
48 |
6.6 |
M6x1P |
3.8*1 |
1650 |
4658 |
43 |
SFH02510-3.8 |
25 |
10 |
3.175 |
40 |
62 |
7 |
12 |
55 |
51 |
48 |
6.6 |
M6x1P |
3.8*1 |
1638 |
4633 |
45 |
SFH02525-1.8 |
25 |
25 |
3.175 |
40 |
62 |
7 |
12 |
64 |
51 |
48 |
6.6 |
M6x1P |
1.8*1 |
843 |
2199 |
22 |
SFH02525-2.8 |
25 |
25 |
3.175 |
40 |
62 |
7 |
12 |
89 |
51 |
48 |
6.6 |
M6x1P |
2.8*1 |
1232 |
3421 |
34 |
SFH03205-3.8 |
32 |
5 |
3.175 |
50 |
80 |
9 |
12 |
37 |
65 |
62 |
9 |
M6x1P |
3.8*1 |
1839 |
6026 |
51 |
SFH03210-3.8 |
31 |
10 |
3.969 |
50 |
80 |
9 |
13 |
57 |
65 |
62 |
9 |
M6x1P |
3.8*1 |
2460 |
7255 |
55 |
SFH03220-2.8 |
31 |
20 |
3.969 |
50 |
80 |
9 |
12 |
76 |
65 |
62 |
9 |
M6x1P |
2.8*1 |
1907 |
5482 |
43 |
SFH03232-1.8 |
31 |
32 |
3.969 |
50 |
80 |
9 |
12 |
80 |
65 |
62 |
9 |
M6x1P |
1.8*1 |
1257 |
3426 |
27 |
SFH03232-2.8 |
31 |
32 |
3.969 |
50 |
80 |
9 |
12 |
112 |
65 |
62 |
9 |
M6x1P |
2.8*1 |
1838 |
5329 |
42 |
Nut Model No. |
d |
I |
Da |
D |
A |
|
B |
L |
W |
H |
X |
Q |
n |
Ca |
Coa |
K |
|
Nut Model No. |
d |
I |
Da |
D |
A |
E |
B |
L |
W |
H |
X |
Q |
n |
Ca |
Coa |
K |
SFH04005-3.8 |
40 |
5 |
3.175 |
63 |
93 |
9 |
15 |
42 |
78 |
70 |
9 |
M6x1P |
3.8*1 |
2018 |
7589 |
60 |
SFH04010-3.8 |
38 |
10 |
6.350 |
63 |
93 |
9 |
14 |
60 |
78 |
70 |
9 |
M8x1P |
3.8*1 |
5035 |
13943 |
67 |
SFH04020-2.8 |
38 |
20 |
6.350 |
63 |
93 |
9 |
14 |
80 |
78 |
70 |
9 |
M8x1P |
2.8*1 |
3959 |
10715 |
54 |
SFH04040-1.8 |
38 |
40 |
6.350 |
63 |
93 |
9 |
14 |
98 |
78 |
70 |
9 |
M8x1P |
1.8*1 |
2585 |
6648 |
34 |
SFH04040-2.8 |
38 |
40 |
6.350 |
63 |
93 |
9 |
14 |
138 |
78 |
70 |
9 |
M8x1P |
2.8*1 |
3780 |
10341 |
52 |
SFH05005-3.8 |
50 |
5 |
3.175 |
75 |
110 |
10.5 |
15 |
42 |
93 |
85 |
11 |
M8x1P |
3.8*1 |
2207 |
9542 |
68 |
SFH05010-4.8 |
48 |
10 |
6.350 |
75 |
110 |
10.5 |
18 |
60 |
93 |
85 |
11 |
M8x1P |
4.8*1 |
5638 |
17852 |
79 |
SFH05020-3.8 |
48 |
20 |
6.350 |
75 |
110 |
10.5 |
18 |
100 |
93 |
85 |
11 |
M8x1P |
3.8*1 |
5749 |
18485 |
87 |
SFH05050-1.8 |
48 |
50 |
6.350 |
75 |
110 |
10.5 |
18 |
120 |
93 |
85 |
11 |
M8x1P |
1.8*1 |
2946 |
8749 |
42 |
SFH05050-2.8 |
48 |
50 |
6.350 |
75 |
110 |
10.5 |
18 |
170 |
93 |
85 |
11 |
M8x1P |
2.8*1 |
4308 |
13610 |
65 |
|
H型螺帽:兩端的防塵片采用薄而有彈性的材質從而加強了刮刷效果,循環回流結構的強化增加了高剛性,高速化功能。另外H型螺帽的安裝尺寸和其他型式的螺帽相比,尺寸相對較小,所以比較適合高速及輕負載的情況,在直線滑臺的制造中,被廣泛采用。
|
|
|
