單螺母內循環——滾珠絲杠——SFI型
|
|
d:外徑 Screw O.D. I:導程 Lead Da:珠徑 Ball Dia n:珠圈數 Number of Circuits Ls:螺桿長度 Screw Length |
Ca:動額定負荷 Basic Dynamic Rating Load(Kgf) Coa:靜額定負荷 Basic Static Rating Load(Kgf) |
螺帽型號 |

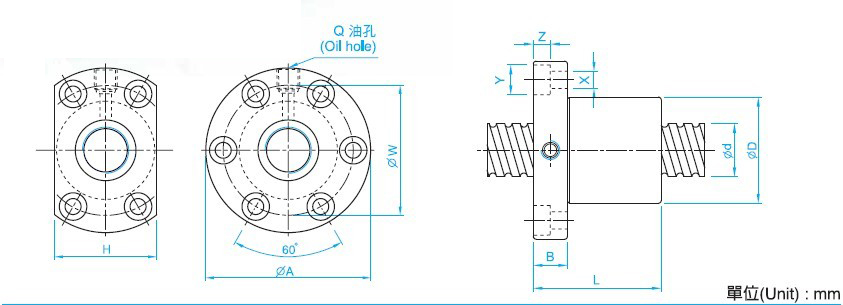

螺桿,螺帽的基本數據 Dimensions |
Nut Model No. |
d |
I |
Da |
D |
A |
B |
L |
W |
H |
X |
Y |
Z |
Q |
n |
Ca |
Coa |
K |
SFI01604-4 |
16 |
4 |
2.381 |
30 |
49 |
10 |
45 |
39 |
34 |
4.5 |
8 |
4.5 |
M6 |
1*4 |
973 |
2406 |
32 |
SFI01605-4 |
5 |
3.175 |
30 |
49 |
10 |
50 |
39 |
34 |
4.5 |
8 |
4.5 |
M6 |
1*4 |
1380 |
3052 |
33 |
SFI01610-3 |
10 |
3.175 |
34 |
58 |
10 |
57 |
45 |
34 |
5.5 |
9.5 |
5.5 |
M6 |
1*3 |
1103 |
2401 |
27 |
SFI02004-4 |
20 |
4 |
2.381 |
34 |
57 |
11 |
46 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
1*4 |
1066 |
2987 |
37 |
SFI02005-4 |
5 |
3.175 |
34 |
57 |
11 |
51 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
1*4 |
1551 |
3875 |
39 |
SFI0205T-4 |
5.08 |
3.175 |
34 |
57 |
11 |
51 |
45 |
40 |
5.5 |
9.5 |
5.5 |
M6 |
1*4 |
1550 |
3845 |
39 |
SFI02504-4 |
25 |
4 |
2.381 |
40 |
63 |
11 |
46 |
51 |
46 |
5.5 |
9.5 |
5.5 |
M6 |
1*4 |
1180 |
3795 |
43 |
SFI02505-4 |
5 |
3.175 |
40 |
63 |
11 |
51 |
51 |
46 |
5.5 |
9.5 |
5.5 |
M8 |
1*4 |
1724 |
4904 |
45 |
SFI02510-4 |
10 |
4.762 |
46 |
72 |
12 |
85 |
58 |
52 |
6.5 |
11 |
6.5 |
M6 |
1*4 |
2954 |
7295 |
51 |
SFI03204-4 |
32 |
4 |
2.381 |
46 |
72 |
12 |
47 |
58 |
52 |
6.5 |
11 |
6.5 |
M6 |
1*4 |
1296 |
4838 |
49 |
SFI03205-4 |
5 |
3.175 |
46 |
72 |
12 |
52 |
58 |
52 |
6.5 |
11 |
6.5 |
M8 |
1*4 |
1922 |
6343 |
52 |
SFI03210-4 |
10 |
6.350 |
54 |
88 |
15 |
90 |
70 |
62 |
9 |
14 |
8.5 |
M8 |
1*4 |
4805 |
12208 |
62 |
SFI04005-4 |
40 |
5 |
3.175 |
56 |
90 |
15 |
55 |
72 |
64 |
9 |
14 |
8.5 |
M8 |
1*4 |
2110 |
7988 |
59 |
SFI04010-4 |
10 |
6.350 |
62 |
104 |
18 |
93 |
82 |
70 |
11 |
17.5 |
11 |
M8 |
1*4 |
5399 |
15500 |
72 |
SFI05010-4 |
50 |
10 |
6.350 |
72 |
114 |
18 |
93 |
92 |
82 |
11 |
17.5 |
11 |
M8 |
1*4 |
6004 |
19614 |
83 |
SFI06310-4 |
63 |
10 |
6.350 |
85 |
131 |
22 |
98 |
107 |
95 |
14 |
20 |
13 |
M8 |
1*4 |
6719 |
25358 |
95 |
SFI08010-4 |
80 |
10 |
6.350 |
105 |
150 |
22 |
98 |
127 |
115 |
14 |
20 |
13 |
M8 |
1*4 |
7346 |
31953 |
109 |
|
I型螺帽是由鋼珠沿著內循環循環器溝槽,斜著越過螺桿的牙峰,回到原點。一般為一圈鋼珠一個循環。此種型式的螺桿至少要有一端是完全的通牙,適用于螺桿根徑值較小的,采用金屬循環器。 |
|
|
